IoT Smart Gas Meter with Steel Case IWG1.6S~IWG6S

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

IoT smart gas meter with steel case IWG1.6S~IWG6S


Product introduction

IoT smart gas meter with steel case is an intelligent gas meter based on Internet+ technology. It can provide gas companies with timely and accurate information on the meter. Meanwhile, it is convenient for gas companies to remotely control and remotely manage the gas meters. The base meter part adopts two kinds of materials, aluminum alloy case or steel case respectively. A variety of anti-reverse and anti-theft gas functions are set in the gas meter. The whole control system adopts the latest single-chip integration technology to ensure the safety, accuracy and reliability of the product operation; the main control electronic module adopts the German overall gluing and full sealing processing technology, which is moisture-proof, dust-proof, anti-static and anti-oxidation.

IoT smart gas meters need to be matched with the corresponding gas data business management platform

Main functions

Meter reading

Automatic meter reading

Automatic upload of gas consumption data

Data query

Gas consumption details are always available

Billing

Step billing

Multiple steps can be set, and two modes can be selected: in-meter step billing & system step billing

Remote price adjustment

Remote adjustment of step prices

Paying

Prepaid

Remote top-up, cell phone top-up, IC card top-up, cardless top-up, self-service top-up machine, SMS alerts

Postpaid

Remote payment, cell phone payment, bank payment, self-service payment machine, SMS alerts

Fault response

Fault alarms

Meter alerts, fault protection, real-time event upload

Fault protection

Low power alert, power-down shut-off, magnetic interference shut-off, over-flow shut-off, idle shut-off, etc.

Remote control

Remote valve control, remote parameter setting, remote program upgrade

Management

Remote Management

PC remote management, mobile remote management

Statistics

Gas consumption statistics

Household/building/region gas consumption statistics

Revenue Statistics

Household/building/region revenue statistics

Customized Statistics

More customizable statistics: fault statistics, maintenance statistics, etc.

Product features

Metering

Grinding technology: using German fine grinding technology, high precision measurement

Movement components: the use of ultrasonic welding technology, movement stable operation

Module

Sealing and gluing: German full sealing and gluing technology is used to ensure stable operation

Sealing effect: moisture-proof, dust-proof, anti-static, anti-oxidation

Sampling

Double reed switch: Japan OKI original imports, fully sealed package, to ensure stable operation

Optical direct reading: two modes of reflective and para-reflective; intelligent conversion, ensuring stable operation

Power consumption

Microcontroller: using the latest microcontroller integration technology, to ensure low power consumption and stable operation

Lithium battery: more than 10 years of service life

Communication

Real-time online: meter data and status are available in real time

Two-way communication: upload and download bi-directional communication

Power down protection

Built-in lithium battery: ensures running time synchronized with world time

Super capacitor: ensure normal operation after external power failure

Built-in anti-theft

Anti-theft protection: built-in anti-backflow device, built-in grid protection, a variety of anti-theft devices

Environment

Dynamic test: The whole meter passes the high and low temperature alternating dynamic operation test to ensure the performance of the whole meter.

Test temperature: -20℃~+40℃ Alternating dynamic operation test

Product tracing

ERP system management, each meter corresponds to a two-dimensional code, permanent product traceability

Technical parameters

Type

IWG1.6S

IWG2.5S

IWG4S

IWG6S

Dimension

   (L×B×H

Steel case

203×163×223

203×163×223

203×163×223

203×163×223

     Weight

Steel case

2.1Kg

2.1Kg

2.1Kg

2.1Kg

Connectors

Threads

M30×2(DN15)

M30×2(DN15)

M36×2(DN20)

M36×2(DN20)

Central distance

130mm

Sampling

Pulse sampling

Dual pulse, fully sealed dual reed switch

Optical direct reading

Reflective, para-reflective

Power supply

Alkaline batteries

>1 year(4*6V)

Lithium battery

>10 years(1*3.6V)

Communication

Spread Spectrum Network

LoRa 、LoRaWan

Public Network

GPRS 、 NB-IoT

Data storage

Meter

>10 years

System

Permanent storage

LCD display

Prepaid

Remaining amount, accumulated dosage, cycle dosage, fault code, Step status, communication status, valve status, battery status

Postpaid

Accumulated usage, fault code, communication status, valve status, battery status

Built-in valve

Durability

n ≥ 10^5 times

Working Environment

Working temperature

-20℃~+40℃

Gas source

Natural gas, liquefied petroleum gas, piped gas, etc.

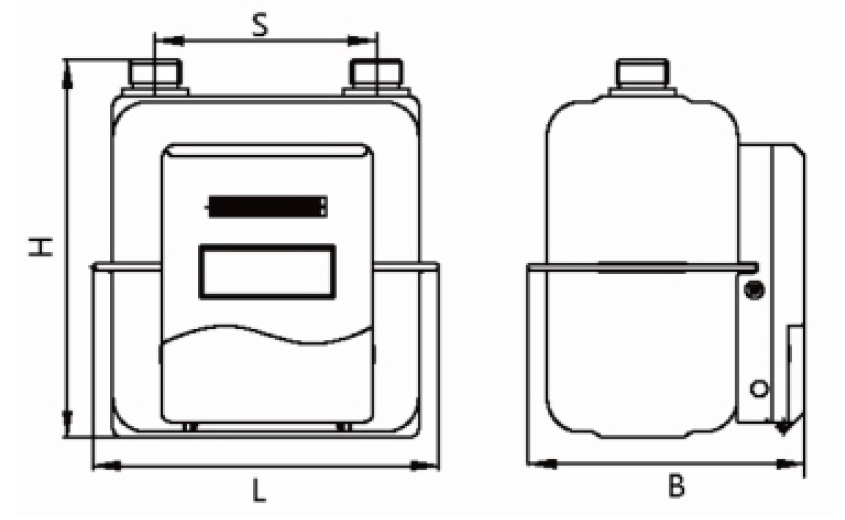

Dimension drawing
