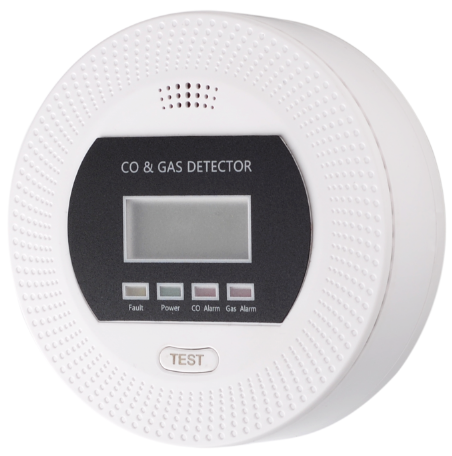

Gas+CO leakage detector with LCD indicator MG-10
Product introduction
The product is wall mounted gas detector with high stability (hereinafter called detector). It is used for detecting leaking gas. Advanced semiconductor sensor is adopted to ensure high stability and long life. It is convenient for mounting. The product is suitable for the safety of residential house, villas, hotels, markets, boarding house ect.
MG-10
GAS+CO LEAKAGE DETECTOR WITH LCD INDICATOR
DC5V with 85-264V Power adapter
Back-up battery can work for 8 hours when main power is off
CO sensor life: 7 years
GAS sensor life:5 years
Gas alarm level: 10% LEL
CO alarm level: 50ppm, 60-90 minutes;
100ppm, 10-40 minutes;
300ppm, within 3 minutes
Sound Level:85dB/3m
Warm-up time:180s
Size:Φ94*35mm
Operating Temperature: -10℃~+50℃
Environment Humidity: ≤95%RH (no condensation)
Auto reset after alarm
Automatic detection of fault
MCU processing adopted
Induced CO,gas-nature gas/LPG
Working with electromagnetic valve or manipulator(optional)
Malfunction auto-check indicator
Alarm Output: Sound&Red LED Flash alarm
Solenoid value signal output (optional)
LCD Display (optional)
