Carbon Monoxide Detector with LCD Indicator CO230/CO231/CO232

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Carbon monoxide detector with LCD indicator CO230/CO231/CO232


Product introduction

The product is wall mounted gas detector with high stability (hereinafter called detector). It is used for detecting leaking gas. Advanced semiconductor sensor is adopted to ensure high stability and long life. It is convenient for mounting. The product is suitable for the safety of residential house, villas, hotels, markets, boarding house ect.

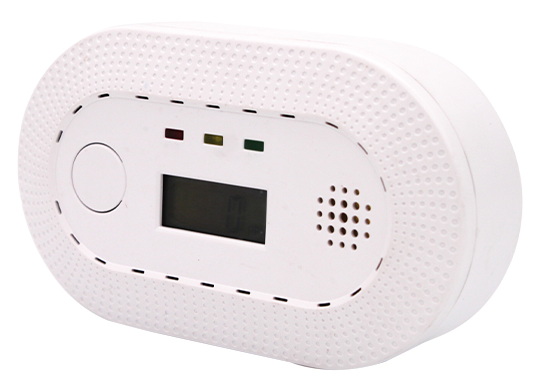

CO-230

CARBON MONOXIDE DETECTOR WITH LCD INDICATOR

Operating Volt: DC 3*1.5 V replaceable battery

sensor life:7 years

Conform to EN50291

Sensor type: Electrochemical

Standby current: < 20uA

Alarm Current: < 75mA

Alarm volume: ≥85dB at 1m

Alarm concentration :50ppm, 60-90 minutes;

100ppm, 10-40 minutes;

300ppm, within 3 minutes

Silence function: approx. 10 minutes

Fault Alarm function

Auto reset after alarm

Size:L125*W74*H37.5mm


The following parameters are optional:

Warm-up Time: about 180S

Alarm Indicator: red LED flash & beeper buzz

Operating Temperature: -10℃~+50℃

Environment Humidity: ≤95%RH (no condensation)

Installation Mode: wall mounted

Alarm Output: Sound & flash alarm

LCD display (optional)

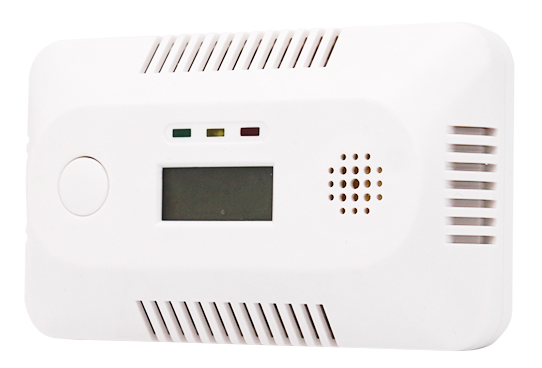

CO-231

CARBON MONOXIDE DETECTOR WITH LCD INDICATOR

Operating Volt: DC 3*1.5 V replaceable battery

sensor life:7 years

Conform to EN50291

Sensor type: Electrochemical

Standby current: < 20uA

Alarm Current: <75mA

Alarm volume: ≥85dB at 1m

Alarm concentration :50ppm, 60-90 minutes;

100ppm, 10-40 minutes;

300ppm, within 3 minutes

Silence function: approx. 10 minutes

Fault Alarm function

Auto reset after alarm

Size: L125*W73*H35mm


The following parameters are optional:

Warm-up Time: about 180S

Alarm Indicator: red LED flash & beeper buzz

Operating Temperature: -10℃~+50℃

Environment Humidity: ≤95%RH (no condensation)

Installation Mode: wall mounted

Alarm Output: Sound & flash alarm

LCD display (optional)

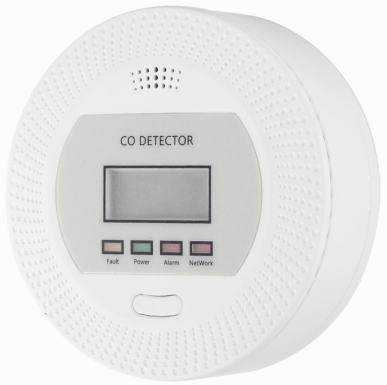

CO-232

CARBON MONOXIDE DETECTOR WITH LCD INDICATOR

Power supply:3V lithium battery (CR123A)

Battery life: 10 years

Sensor life: 7 years

Conform to EN50291

Sensor type: Electrochemical

Standby current:﹤20uA

Alarm current:﹤35mA

Alarm volume: ≥85dB at 1m

Alarm concentration :50ppm, 60-90 minutes;

100ppm, 10-40 minutes;

300ppm, within 3 minutes

Silence function: approx. 10 minutes

Fault Alarm function

Auto reset after alarm

Size:Φ94*H35.1mm


The following parameters are optional:

Warm-up Time: about 180S

Alarm Indicator: red LED flash & beeper buzz

Operating Temperature: -10℃~+50℃

Environment Humidity: ≤95%RH (no condensation)

Installation Mode: wall mounted

Alarm Output: Sound & flash alarm

LCD display (optional)
